Astec Mobile VSI Plant FT2500

Astec - Mobile VSI Plant FT2500

Supplier: Astec Australia

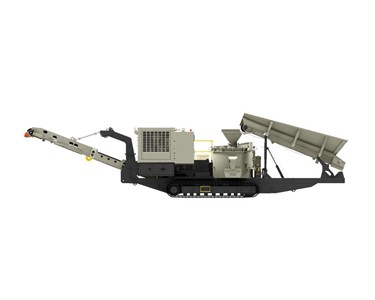

Mobile VSI Plant FT2500

Our mobile vertical shaft impactor plant is built to produce high-quality sand and aggregate products.

Receive 1-3 days from order

Designed as a high-capacity plant, this plant delivers highly consistent end products with excellent particle shape for jobs that demand precision. Producers benefit from the plant’s versatile capability of being combined in open- and closed-circuit configurations with other mobile equipment.

Belt Feeder

42” (863mm) x 17’ (5.2m) belt feeder
3.0 cubic yard hopper
Hydraulically folds for transport

Impact Crusher - VSI

Available in; hard/standard, semi autogenous, and autogenous internal configurations
Hydraulically variable speed 700 to 1,400RPM
Self-contained low pressure bearing oil lube system, grease lubricated pedestal seals
Fully replaceable liners

Under Crusher Conveyor

48” (1,016mm) fixed height with full spill boards
Impact bed, 360PIW, endless belting
Easily removed for maintenance

Chassis

Sculpted frame design
24” (600mm) tracks with dual drive
Track length 12’ 6” (3.6m)
Balanced for zero cribbing
Dust suppression with manifold

Power and Controls

CAT C13 440hp/328kw Tier 4 Final
180gal (680L) fuel tank
200gal (575L) oil reservoir
Radio remote/tether control system
OPS 7 with push button or touchscreen
Crusher CSS adjusted safely at control panel
Real time system monitoring display
