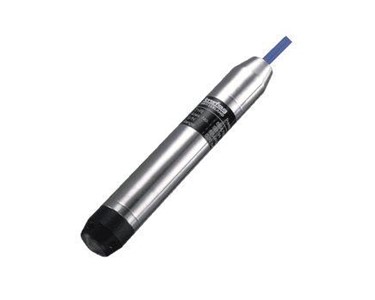

Submersible Pressure Transmitter -5°C - +50°C | EXNAL 8858 Ex Get latest price

Read more...

To contact Cebeco about Submersible Pressure Transmitter -5°C - +50°C | EXNAL 8858 Ex use Get a quote.

Main Features

• Pressure ranges from 100 mbar
• Cable PUR or FEP
• Chemical resistant material, in titanium
• Explosion-proof Ex ia IIC T3 … T6

Technical Data

• Product Code 8858
• Name EXNAL
• Designation Ex Submersible Pressure Transmitter
• Brand Trafag
• Measuring range 0…0.1 to 0…25 bar, ≤ 1 bar, ≤ 100 bar, < 15 psi, <1500 psi, Relative pressure
• Product category Level Sensors & Switches, Ex Instruments Pressure & Level
• Accuracy @ 25? typ. 0.1 % FS, 0.25% FS, 0.5 % FS, 0.3 % FS
• Output signal 4 to 20 mA
• Special features high corrosion resistance
• Measuring principle Piezoresistive
• Industry Shipbuilding, IECEx, ATEX, Water treatment, Ex zones, Level measurement
• Applications Ex SEV 11 ATEX 0145 X, Shipbuilding
• Approval / conformity DNV-GL
• Electrical connections Cable PUR or FEP
• Pressure connections Open; Closed; G1/4" m
• Media temperature T4/T6: -5°C ... +50°C
• Ambient temperature T4/T6: -5°C ... +50°C
