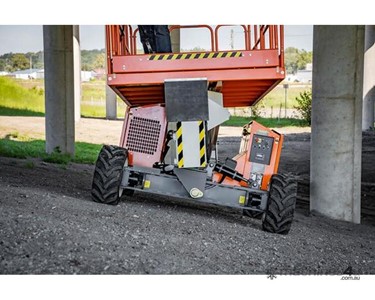

Handles gradients up to 50% with automatic self-levelling for maximum stability.

Key Features

Automatic powered platform levelling
Powerful 4 wheel drive
Oscillating front axle for optimal terrain handling
Roll-out deck extension for increased outreach
Descent alarm and high-grip all-terrain tyres
Dual multi-disc brakes with proportional controls
Flashing amber light, horn, and all motion alarm system
Hour meter with on-board diagnostics display
Fold-down guardrails for compact storage and transport
2 year parts & labour, 5 year structural warranty

Specifications

Condition:	New
Category:	Rough Terrain Scissor Lift
Make:	Snorkel
Model:	SL26RT
Drive Type:	Wheeled 4WD
Max Working Height:	10.0 m
Max Platform Height:	8.0 m
Platform Size (Stowed):	1.72 m x 3.66 m
Platform Size (Extended):	1.72 m x 4.6 m
Extension Deck Length:	0.91 m
Overall Width:	2.13 m
Overall Length:	3.79 m
Stowed Height:	2.6 m
Min Height (Guardrails Folded):	1.7 m
Chassis Ground Clearance:	305 mm
Axle Ground Clearance:	195 mm
Platform Capacity (SWL):	680 kg
Max Drive Height:	8.0 m
Max Wind Speed:	12.5 m/s
Max Drive Speed (Stowed):	6.4 km/h
Max Drive Speed (Elevated):	0.8 km/h
Raise/Lower Time:	21/32 seconds
Gradeability:	50%
Max Levelling (Front to Rear):	9°
Max Levelling (Side to Side):	13°
Inside Turning Radius:	3.9 m
Outside Turning Radius:	5.64 m
Tyres:	26 x 12.00 – 12 Foam Filled
Controls:	Proportional Joystick
Drive System:	4 Wheel Drive (Hydraulic Motors and Flow Dividers)
Power Source:	Kubota D-902 Water-Cooled Diesel, Tier 4 Final
Weight:	3,500 kg

With more than 20 years of experience, Equipment Sales Australia delivers top-quality construction equipment, expert industry advice, and a trusted network of service providers for long-term performance.

To contact Equipment Sales Australia about Snorkel SL26RT Speed Level Sigma Boom Lift use Get a quote.
