Prorotor L Rakes 540RPM

Supplier: New Holland Agriculture

Prorotor L Rakes 540RPM

ProRotor™ L range features two side mounted rakes which can deliver the crop to the left hand side on 640T and right hand side on the 630 model.

Receive 1-3 days from order

The multi-link frame enables a variable working width that can be adjusted from the cab. Choose between single swath, two individual swaths or the turn swath options. The 640T with Auto-Steer feature automatically regulates the distance between the two rotors which improved manoeuvrability and always maintains the rotor overlap to avoid missing any value crop.

Explore Features

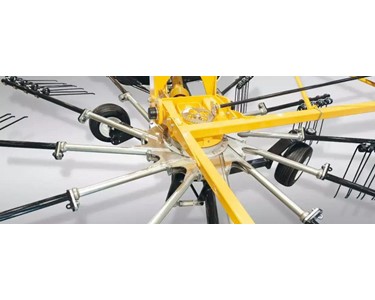

Maintenance free rotor arms

The rotor arms on the ProRotor 420, 450, L 630, L 640 Auto-Steer, L 640, C 760 and C 820 models feature maintenance-free ball bearings at either end. Manufactured from solid steel, they have been engineered by design to withstand intensive usage.

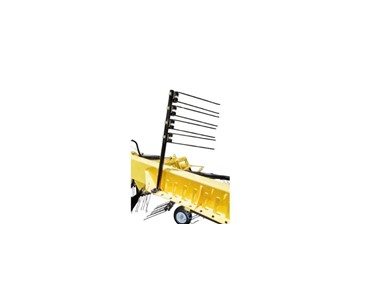

Efficient tine arm storage

For easy transport and storage, the tine arms can be easily dismounted and stored in a dedicated tine arm storage area. This enables better visibility during transport, and also reduces the overall width of the rake, ideal when travelling down narrow country lanes or when being stored away during winter.

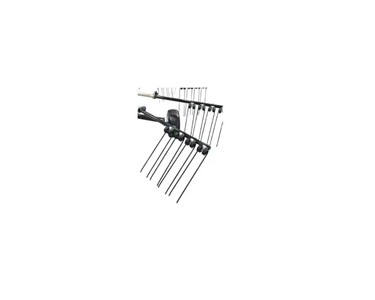

Tangential tine arm technology

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

Available Models:

New Holland ProRotor™ L 640T
New Holland ProRotor™ L 640T Auto-Steer
New Holland ProRotor™ L 630

Specifications:

New Holland ProRotor™ L 640T	New Holland ProRotor™ L 640T Auto-Steer	New Holland ProRotor™ L 630
Specifications
Type of rake	Side delivery	Side delivery	Side delivery
Mounting type	Drawbar hitch	Drawbar hitch	2- point linkage
Working width (m)	3.6-6.35	3.6-6.35	6.3
Number of swaths	1 or 2	1 or 2	1 or 2
Rotor diameter (m)	3	3	3.2
Tine arms per rotor / double tines per tine arm	12/4	12/4	12/4
MIN-trans detachable tine arms	Standard	Standard	Standard
Tangential tine arm control	Standard	Standard	Standard
Covered cam track	Standard	Standard	Standard
3rd wheel on drawbar option	Optional	Optional	–
3 wheel multi-touch chassis	–	–	Standard
Advanced wide-track axle	Standard	Standard	–
Drive chassis	–	–	Standard
Tandem double wheel (Front rotor)	Standard	Standard	–
Dual wheels	Optional	Optional	–
Tandem caster wheels	–	–	Optional
Central height adjustment	Standard	Standard	Standard
Transport width (m)	2.2 - 3.0	2.2 - 3.0	2.82
Transport height without/with rake arms (m)	–	–	3.40/4.00
Active steering of the frame	–	Standard	Standard
Central cardanic suspension	Optional	Optional	Standard
Rotors tyres	18.5/8.5-8	18.5/8.5-8	16x6.5-8 10PR
Main frame tyres standard	–	–	10.0/75-15.3 8PR
Main frame tyres optional	–	–	13.0/55-16
Minimum PTO Power [kW/hp(CV)]	30/40	30/40	40/55
PTO speed (rpm)	540	540	540
Hydraulic remote required	1SA + 1DA	1SA + 1DA	1SA
Weight (kg)	1335	1490	2090

To contact New Holland Agriculture about Prorotor L Rakes 540RPM use Get a quote.

Explore Features

Maintenance free rotor arms

Efficient tine arm storage

Tangential tine arm technology

The rake’s tine arms are not mounted in the traditional 90° configuration, rather they are placed tangentially to ensure optimal delivery and soft handling of the crop.

Available Models:

New Holland ProRotor™ L 640T
New Holland ProRotor™ L 640T Auto-Steer
New Holland ProRotor™ L 630

Specifications:

New Holland ProRotor™ L 640T	New Holland ProRotor™ L 640T Auto-Steer	New Holland ProRotor™ L 630
Specifications
Type of rake	Side delivery	Side delivery	Side delivery
Mounting type	Drawbar hitch	Drawbar hitch	2- point linkage
Working width (m)	3.6-6.35	3.6-6.35	6.3
Number of swaths	1 or 2	1 or 2	1 or 2
Rotor diameter (m)	3	3	3.2
Tine arms per rotor / double tines per tine arm	12/4	12/4	12/4
MIN-trans detachable tine arms	Standard	Standard	Standard
Tangential tine arm control	Standard	Standard	Standard
Covered cam track	Standard	Standard	Standard
3rd wheel on drawbar option	Optional	Optional	–
3 wheel multi-touch chassis	–	–	Standard
Advanced wide-track axle	Standard	Standard	–
Drive chassis	–	–	Standard
Tandem double wheel (Front rotor)	Standard	Standard	–
Dual wheels	Optional	Optional	–
Tandem caster wheels	–	–	Optional
Central height adjustment	Standard	Standard	Standard
Transport width (m)	2.2 - 3.0	2.2 - 3.0	2.82
Transport height without/with rake arms (m)	–	–	3.40/4.00
Active steering of the frame	–	Standard	Standard
Central cardanic suspension	Optional	Optional	Standard
Rotors tyres	18.5/8.5-8	18.5/8.5-8	16x6.5-8 10PR
Main frame tyres standard	–	–	10.0/75-15.3 8PR
Main frame tyres optional	–	–	13.0/55-16
Minimum PTO Power [kW/hp(CV)]	30/40	30/40	40/55
PTO speed (rpm)	540	540	540
Hydraulic remote required	1SA + 1DA	1SA + 1DA	1SA
Weight (kg)	1335	1490	2090
