Pallet Exchangers are proven in a wide range of environments. They enable easy change out of pallets and assists in the removal of honeycomb cooling spacers. Customers benefit by avoiding double handling of products eliminating typical manual handling practices.

How does it work?

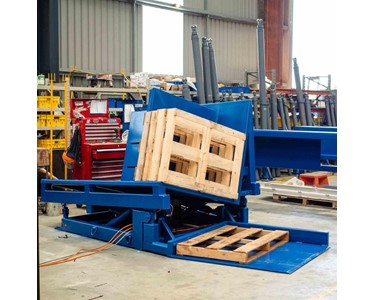

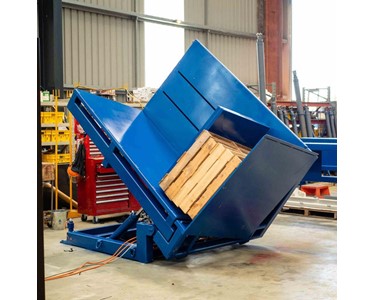

A 2-sided tilting pallet booth configured so that the side walls incline to form a V as the booth tilts. The back wall is inclined at 15 degrees to horizontal when the booth is fully rotated ensuring the load is always secure and square. This mechanism ensures the load is safely held without any requirement to translate the side walls in.

A retractable platen automatically lowers onto the load which prevents movement while the load is tilted. When the exchange unit is fully rotated to 95 degrees the booth floor automatically lowers back to floor level so the pallet can be safely and simply exchanged.

Exchanger Applications

Durable and tough, Exchangers can be used in a wide range of applications including warehousing, pharmaceutical, meat processing & cold storage.

Food manufacturers who wish to eliminate wooden pallets from the processing floor. The timber pallet can be swapped for an in-house plastic or steel pallet, which conforms to “clean room” standards.

To reduce pallet hire costs by transferring from expensive hire pallets to in-house pallets.

In automated storage and retrieval systems where pallets are routinely checked and defective pallet loads are flagged for exchange.

When goods earmarked for export are sitting on rental or in-house pallets and must be transferred to the export pallet (or slip-sheet) suitable for export.

Pallet loads which need to be straightened and “squared up” on the pallet.

Load and pallet removal are all performed at floor level with a hand pallet truck.

Specifications

• Pallet Exchanger PX200
• Capacity 2000 kg
• Platform Height 30mm maximum for easy pallet truck loading
• Platform Area 1230 x 1250mm (to fit a CHEP size pallet)
• Opening Size 600-2200mm (load height 600-2000mm)
• Tilt Protection 3 side fence with light curtain protection across the cell opening
• Booth Rotation 95 degree (adjustable by limit switch)
• Booth Tilt Angle 15 degrees
• Load Rotation Time 20 Seconds up / down
• Power Unit 415V / 3 Phase / (10-amp outlet required)
• Controls Push-button fence mounted plus Radio remote control
• Product Finish Industrial Enamel
• Product Warranty 12 months
