The Magnaflux Y-2 is an AC electromagnetic yoke engineered for fast, reliable magnetic particle testing (MPI) of ferrous components. Its lightweight, ergonomic grip and trigger reduce arm and wrist fatigue during extended inspections, while a field-swappable power cord and isolated, replaceable trigger switch mean a damaged cord or switch no longer takes the whole tool out of service. An IP54 o-ring sealed housing keeps dust and moisture out, making the Y-2 a durable choice for tough working environments, from workshops to offshore platforms.

Specifications

• NDT method:Magnetic particle testing (MPI)
• Waveform:AC
• Electrical requirements:110–115V, 60 Hz (4.3 A max) or 50 Hz (6.3 A max); 220–230V, 50/60 Hz (2.6 A max) — voltage/plug variants available
• Tangential field strength:>2 kA/m at midpoint between legs/poles
• Lifting force:>10 lb / 4.5 kg (44 N), exceeding ASTM lifting requirements
• Duty cycle:50%, max "on" time 90 seconds
• Ingress protection:IP54 (IEC 60529) sealed housing
• Weight:4.8 lb / 2.2 kg (yoke only); 6.2 lb / 2.8 kg (with cord)
• Leg/pole span:2.5–10.5 in / 6.4–27 cm, adjustable
• Contact/pole size:1.00 x 1.75 in / 25 x 19 mm
• Cord length:12 ft / 3.6 m, detachable
• Compliance:ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024, ISO 9934-3, MIL-STD-271; CE / WEEE / RoHS / UKCA marked

Features

• Ergonomic, lightweight design to reduce operator arm and wrist fatigue
• IP54 sealed, o-ring housing resists dust and water ingress

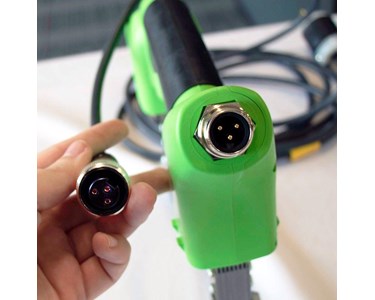

• Field-swappable power cord for fast, easy servicing on site
• Isolated, replaceable trigger switch
• Steel shields for leg protection
• Exceeds ASTM lifting force specifications
• Convenient carrying case supplied with every yoke

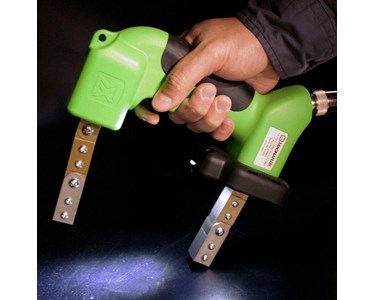

• Optional super-bright LED light attachment illuminates the inspection area while magnetising the part
• Compatible with dry magnetic powders or fluorescent wet method aerosols
• All-in-one kit option available with #1 Gray and #8A Red magnetic powders, yellow paint marker and cleaning cloth

Applications

• Field testing and in-service inspections
• Weld inspection and spot inspections
• Hard-to-reach or demanding inspection environments
• Detecting surface-breaking defects such as fatigue cracks, grinding cracks, seams, tears, shrink cracks, quenching cracks, laps, inclusions and welding slag
