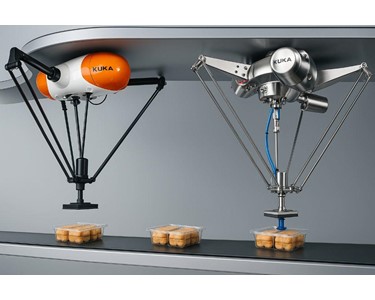

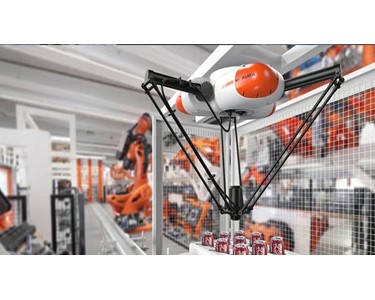

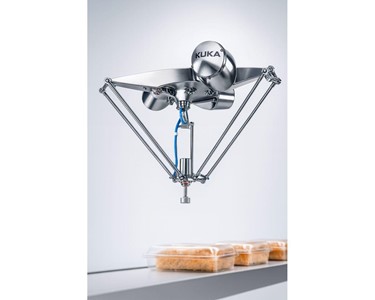

Lightning-fast. Ultra-precise. Built for hygienic production. The KR DELTA series delivers blistering pick-and-place speeds with cycle times down to 0.32 seconds and payloads up to 6 kg, in stainless steel or carbon fibre construction.

Description
Cycle times as fast as 0.32s
Contact us for availability

Specifications of this product

  • Rated payload: 3 kg (up to 6 kg in select cases)
  • Axes: 4
  • Reach/diameter: 1200 mm
  • Repeatability: ± 0.05 mm (ISO 9283)
  • Protection rating: IP67 (IP69K hygienic variant)
  • Controller: KUKA KR C5 micro
  • Footprint: approx. Ø350 mm
  • Mounting: ceiling or inverted

Features of this product

  • 4-axis delta kinematics for extremely fast cycle times and low inertia
  • Self-lubricating joints and sealed drive systems for low maintenance
  • Compact footprint ideal for space-constrained cells
  • Hygienic, stainless-steel or carbon-fibre construction for food/pharma
  • Cloud/IoT-ready KR C5 micro controller for Industry 4.0 integration
  • Ceiling or inverted mounting frees up floor space

Applications of this product

  • High-speed pick & place of bottles, trays, blister packs and packaged goods
  • Sorting and feeding parts in food & beverage lines, pharmaceutical vials or syringes
  • Machine tending/unloading and inserting small part components
  • Packaging, palletising or depalletising tasks where cycle time and space are critical

Explore the KR Delta Robots solution or request a quote: https://industrial-robotics.com.au/product/kuka-kr-delta-robots/
