Jireh Pit Gauge

The Jireh Pit Gauge is a configurable, precision digital tool for manual pit and surface variation measurement, offering rotating readouts and multiple arm lengths for demanding NDT inspections.

Extension arms

Receive 1-3 days from order

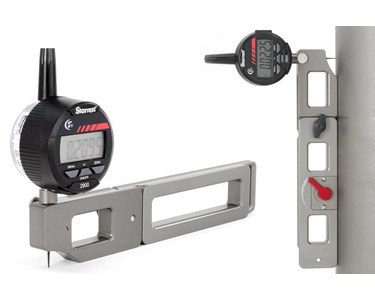

The Jireh Pit Gauge is a modular, digital pit depth gauge designed for accurate, repeatable measurement of surface variations such as corrosion pitting. Built around a choice of Starrett or Mitutoyo digital indicators, it's configured with two, four or six non-magnetic extension arms to suit the inspection area, and can be fitted with optional magnetic arms for hands-free mounting to ferrous surfaces — even upside down. A dedicated blind side base also allows one-sided pit depth measurements in restricted-access areas such as flanges, elbows and large weld caps.

Specifications

General

Indicator tip diameter: 0.914 mm (0.036 in) — spare tip included
Centre base width: 11.6 cm (4.6 in)
Blind side base width: 9.5 cm (3.8 in)
Extension arm width: 17.1 cm (6.7 in)
Assembled width — 2 arm configuration: 42 cm (16.5 in)
Assembled width — 4 arm configuration: 72.5 cm (28.5 in)
Assembled width — 6 arm configuration: 103 cm (40.6 in)
Shipping weight — 2 arm kit: 1.2 kg (2.7 lb)
Shipping weight — 4 arm kit: 1.54 kg (3.4 lb)

Features

Choice of Starrett (rotating face, 1" range, IP67) or Mitutoyo (compact, 1/2" range, IP42) digital indicator
Configurable with 2, 4 or 6 non-magnetic extension arms to suit the inspection span

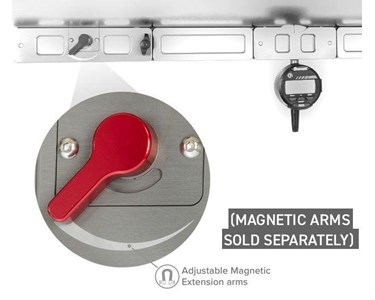

Optional magnetic arms free up the operator's hands and prevent drops, mounting the gauge to ferrous surfaces even upside down
Blind side base enables one-sided pit depth measurement in limited-access areas
Rotating indicator display (Starrett) keeps readings easy to view in any mounting orientation
Supplied in a rugged carrying case with user manual and spare indicator tip

Applications

Manual pit depth and surface variation inspection
Corrosion pitting assessment on pipework, vessels and structural steel
One-sided measurement in restricted-access locations — flanges, elbows, large weld caps
Hands-free, upside-down measurement on ferrous surfaces using magnetic arms
General NDT/inspection use in oil & gas, industrial and structural inspection settings

Specifications

General

Indicator tip diameter: 0.914 mm (0.036 in) — spare tip included
Centre base width: 11.6 cm (4.6 in)
Blind side base width: 9.5 cm (3.8 in)
Extension arm width: 17.1 cm (6.7 in)
Assembled width — 2 arm configuration: 42 cm (16.5 in)
Assembled width — 4 arm configuration: 72.5 cm (28.5 in)
Assembled width — 6 arm configuration: 103 cm (40.6 in)
Shipping weight — 2 arm kit: 1.2 kg (2.7 lb)
Shipping weight — 4 arm kit: 1.54 kg (3.4 lb)

Features

Choice of Starrett (rotating face, 1" range, IP67) or Mitutoyo (compact, 1/2" range, IP42) digital indicator
Configurable with 2, 4 or 6 non-magnetic extension arms to suit the inspection span
Optional magnetic arms free up the operator's hands and prevent drops, mounting the gauge to ferrous surfaces even upside down
Blind side base enables one-sided pit depth measurement in limited-access areas
Rotating indicator display (Starrett) keeps readings easy to view in any mounting orientation
Supplied in a rugged carrying case with user manual and spare indicator tip

Applications

Manual pit depth and surface variation inspection
Corrosion pitting assessment on pipework, vessels and structural steel
One-sided measurement in restricted-access locations — flanges, elbows, large weld caps
Hands-free, upside-down measurement on ferrous surfaces using magnetic arms
General NDT/inspection use in oil & gas, industrial and structural inspection settings
