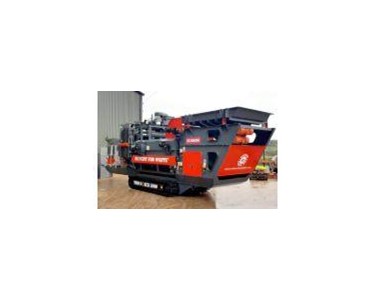

Magnetic Separation. The unique HogMag Mobile Eddy Current Separator (THM ECS- 2000) from Ecohog incorporates a 22-pole High Gauss Eddy Current Separator with a fully mobile crawler track chassis.

Invest in the hardest working mobile Eddy Current Separator on the market. Maximum rates of non-ferrous metal and ferrous metal separation. With the flexibility of tracks from the THM Eddy Current Separator 2000. Get the results that will matter to your scrap yard’s bottom line.

By combining an integrated vibrating pan, magnetic drum combined with a 2 metre wide, 22 pole eddy current separator, this unit makes light work of multiple waste streams, in any environment.

&nbsp:

Recovers non ferrous metals such as aluminium cans, copper and brass in high volumes.

3 integrated, folding stockpiling conveyors creates ultimate processing and organised separation on site.

The mobile THM Eddy Current Separator 2000 is the ideal downstream replacement for existing static Eddy Current Separators and an excellent partner for mobile Shredders, Screeners and Trommels – removing the costs associated with static machinery and providing your site with a significant amount of flexibility.

The Tracked HogMag Eddy Current Separator 2000 can sort through:

• Aluminium Can Recycling
• Municipal Solid Waste
• Scrap Metal
• Automotive/Vehicle Fragment
• Construction Waste/C&D Waste
• Brass and Copper Recovery
• Construction and Industrial Waste
• Refused Derived Fuel
• Incinerator Slag
• Waste Wood Processing
• Biomass
• Glass (MRF) Clean Up
• Shredder Material
• Foundry Sand

How does our Eddy Current Separator work?

Waste material is fed onto the conveyor via an integrated vibrating pan feeder. Firstly ferrous metal will be separated from the stream as the magnetic drum attracts and removes it into it’s on pile via a stockpiling conveyor.

Then the waste stream that still contains non-ferrous metal moves along the the conveyor that also house a powerful magnet rotor. The rotor will force the non-ferrous metal into it’s own bin by repelling it, whilst the remaining waste material will fall into another bin.

You are then left with 3 separate materials that have been so efficiently sorted they are ready for recycling/trading on. Teams well with our ScrapHog – our multi-functional solution for a superior fines clean on oversize scrap and heavy duty metals. Together they are an unstoppable combination; designed to generate unrivalled levels of recovery of clean, ready to trade material.

Also available is the HogMag’s little brother – Mobile HogMag Eddy Current Separator (THM ECS-1500) with a 1.5m Eddy Current Separator

 Key Features

• Integrated Vibrating Pan
• Magnetic Drum Rev X-E ST22-80 ECS
• 3 Integrated folding stockpiling conveyors
• Crawler Tracks
• Heavy duty abrasion resistant belts
• Onboard 100KVA Generator
• Hydraulic Powerpack
• Energy efficient motors
• Sealed shell bearings
• Onboard Air Compressor for maintenance, cleaning and dust suppression
• High throughput
• Low maintenance
• Low energy
• Optional Onboard Airhog Suction System

Suitable For

• Waste Wood Processing
• Biomass
• Glass (MRF) Clean up
• Aluminium Can Recycling
• Scrap Metal Processing
• Automotive Fragment
• Shredder Material
• RDF / C&D / C&I
• Brass / Copper Recovery
• Incinerator Slag
• Foundry Sand
