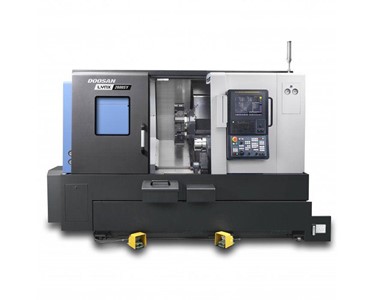

CNC Turning Centre - LYNX 2600SY

Supplier: Hare & Forbes Machinery House

Receive 1-3 days from order

Overview

Basic Specifications
630mm Swing Over Bed
460mm Swing Over Saddle
610mm Turning Length
380mm Turning Ø
105mm (±52.5mm) Y Axis Travel
360deg (0.001deg Resolution) C Axes, Main & Sub Spindles
260kg Main Spindle Capacity, 520kg Shaft Work Capacity

Features

Sub Spindle

Turret

CNC Control

Standard Equipment Included

Main Spindle
81mm Bar Capacity (Main)
250mm Ø Hydraulic Chuck
3500RPM Spindle Speed
18.5kW Spindle Power
403Nm Spindle Torque

50mm Bore of Draw Tube
152mm Ø Hydraulic Chuck
4500RPM Spindle Speed
7.5kW Spindle Power
84Nm Spindle Torque

BMT 55 Tool Mounting
5000RPM Live Tool Speed
5.5kW Live Tool Power
42Nm Live Tool Torque
24 Position / 12 Station Turret
20mm Square / 32 & 25mm Ø Tool Capacity
ER25 Live Tool Collet Size
Eppinger PreciFlex Tooling System

Doosan Fanuc I Series (0iPlus) CNC Controller
15" Colour LCD Monitor
Rigidsynchronised tapping
Custom Macro B
Ethernet Interface
RS232 Interface
USB & PCMCIA Memory Card Slot
Doosan Ezi Guide "I" Conversational software:
Graphical Turning Cycles
Graphical Milling Cycles
Full 3D Graphical Simulation
Onboard G & M code assistance

3 Jaw Hydraulic Power Chucks
Grease Cartridge Auto Lubrication System
Chuck Cleaning Air Blast
Eppinger rotary tool holders with PreciFlex adapter set
Coolant supply equipment
Foot switches
Transformer
Full enclosure chip and coolant shield with front door interlock
Hand tool kit
Automatic lubrication equipment
Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
Safety name plates / tags where required
Risk assessment
Work light

Includes

1 x OD Tool Holder Main (R & L)
1 x Face Tool Holder
1 x Double OD tool holder(R & L) Main
1 x Double OD tool holder(R & L) SUB
1 x Double OD tool holder(R & L) Main/SUB
1 x Cut-off tool holder(Right Hand)
1 x ID tool holder Main
1 x Triple ID tool holder
1 x U Drill Cap Main
2 x Straight Milling Units
2 x Angular Milling Units
2 x Boring Sleeve Kit
2 x U Drill Sleeve Kit
1 x PreciFlex Adapter Kit
1 x ER 25 Milling Collet Set
1 x Hard & Soft Jaws per Chuck

Overview

Features

Sub Spindle

Turret

CNC Control

Standard Equipment Included

Main Spindle
81mm Bar Capacity (Main)
250mm Ø Hydraulic Chuck
3500RPM Spindle Speed
18.5kW Spindle Power
403Nm Spindle Torque

50mm Bore of Draw Tube
152mm Ø Hydraulic Chuck
4500RPM Spindle Speed
7.5kW Spindle Power
84Nm Spindle Torque

BMT 55 Tool Mounting
5000RPM Live Tool Speed
5.5kW Live Tool Power
42Nm Live Tool Torque
24 Position / 12 Station Turret
20mm Square / 32 & 25mm Ø Tool Capacity
ER25 Live Tool Collet Size
Eppinger PreciFlex Tooling System

Doosan Fanuc I Series (0iPlus) CNC Controller
15" Colour LCD Monitor
Rigidsynchronised tapping
Custom Macro B
Ethernet Interface
RS232 Interface
USB & PCMCIA Memory Card Slot
Doosan Ezi Guide "I" Conversational software:
Graphical Turning Cycles
Graphical Milling Cycles
Full 3D Graphical Simulation
Onboard G & M code assistance

3 Jaw Hydraulic Power Chucks
Grease Cartridge Auto Lubrication System
Chuck Cleaning Air Blast
Eppinger rotary tool holders with PreciFlex adapter set
Coolant supply equipment
Foot switches
Transformer
Full enclosure chip and coolant shield with front door interlock
Hand tool kit
Automatic lubrication equipment
Comprehensive manuals incorporating, Operation, Maintenance, Programming, Spare Parts Diagrams, Hydraulic Schematics, Electrical Schematics and Ladder Diagrams.
Safety name plates / tags where required
Risk assessment
Work light

Includes

1 x OD Tool Holder Main (R & L)
1 x Face Tool Holder
1 x Double OD tool holder(R & L) Main
1 x Double OD tool holder(R & L) SUB
1 x Double OD tool holder(R & L) Main/SUB
1 x Cut-off tool holder(Right Hand)
1 x ID tool holder Main
1 x Triple ID tool holder
1 x U Drill Cap Main
2 x Straight Milling Units
2 x Angular Milling Units
2 x Boring Sleeve Kit
2 x U Drill Sleeve Kit
1 x PreciFlex Adapter Kit
1 x ER 25 Milling Collet Set
1 x Hard & Soft Jaws per Chuck
