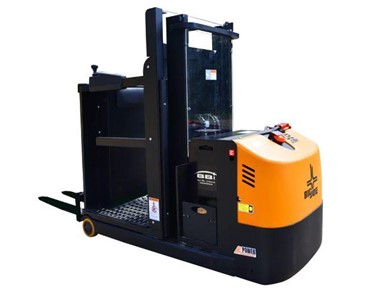

The J2 "JOEY" Low-Level Order Picker is a versatile machine that combines the maneuverability of the J1 Task Support Vehicle with the attributes of a counterbalanced forklift.

With a compact design and exceptional maneuverability, the J2 is perfect for low-level order picking and pallet staging. It can elevate an operator up to 48" and lift loads of up to 1,500 lbs to a height of 72". The J2 offers travel speeds of up to 4.5mph, making it efficient and productive in warehouse operations.

Key Features

• Compact Design: The J2 Low-Level Order Picker features a compact design for easy maneuverability in tight spaces, improving efficiency in order picking tasks.

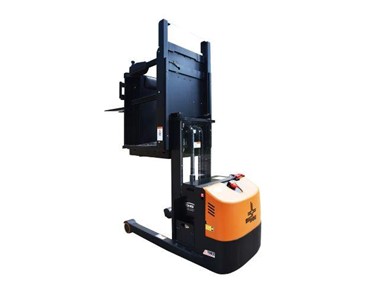

• Mini Mast with High Lift Capacity: With a mini mast, the J2 can lift loads of up to 1,500 lbs to a height of 72", providing access to pick faces close to the floor.
• LCD Dash Display: The onboard LCD dash display allows for selectable travel settings and diagnostics, providing user-friendly information and ease of operation.
• Electronic Power Steering: Equipped with electronic power steering and infinitely variable speed control, the J2 ensures smooth and precise handling.

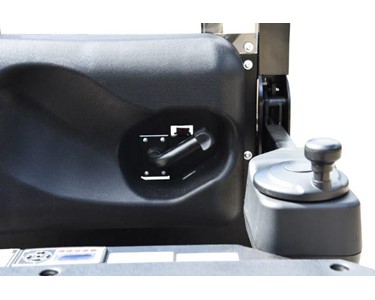

• Finger Tip Controls: The retractable vehicle guardrails integrate finger-tip controls, enhancing operator comfort and convenience during operation.
• Articulating Driveline: The J2 features a 180-degree articulating driveline with a compact minimum turn radius, enabling efficient navigation in confined spaces.
• Optional Forward Controls: The J2 offers optional forward controls, eliminating the need for side guardrails for even greater flexibility.

Applications

The J2 "JOEY" Low-Level Order Picker is the perfect solution for warehouses and distribution centres looking to improve efficiency in low-level order picking and pallet staging. Its compact design allows it to navigate through narrow aisles and confined spaces, optimising material handling operations. The high lift capacity and mini mast make it ideal for accessing pick faces close to the floor, enhancing productivity. With its easy-to-use LCD dash display and electronic power steering, the J2 ensures comfortable and efficient operation for the operator. Its multiple pending patents highlight the innovative and unique features of this versatile low level order picker.

Technical Specifications

Capacity (kg):

• 700kg

Load Centre Distance (mm):

• 600 mm

Max Height (mm):

• 1063 mm

Battery Voltage/Normal Capacity:

• 24V/224Ah/340Ah

Battery Onboard:

• Lithium Battery Onboard with external charger

Travel Speed: (km/h)

• 8 Km/h

Drive Control:

• AC

Type:

• Order Picker
