Air Compressor Pump 10hp | W3090

Air Compressor Pump 10hp | W3090 Price Guide: $617

Supplier: Conon Motor

Air Compressor Pump 10hp | W3090

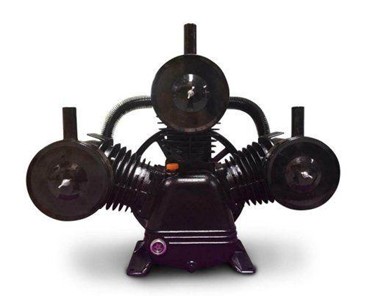

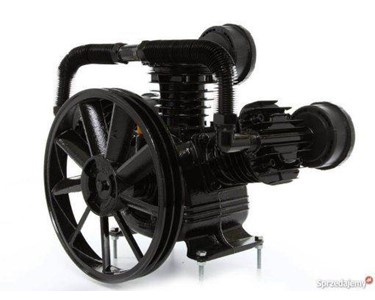

Air Compressor Cast Iron Pump 37cfm 7.5kw 10hp Motor 115psi 8bar 1100l/min

Receive 1-3 days from order

This 42cfm TRIPLE cylinders compressor pump is a high quality 3 cylinder single stage CAST IRON pump that is suitable for use with 7.5KW/10HP three PHASE electric motor. Suitable for industrial & mechanical use.

Specifications:

Model: W3090
Type: Air Compressor Pump
Motor Suits: 7.5KW/10HP
Air Receiver Size: 150L TO 250L
Pump Displacement: 1198L/min at 1050rpm / 42cfm
Bore x Stroke: 90mm x 3
Flywheel Diameter: 350mm DOUBLE Grooves
Dimensions: 620 x 430 x 510mm
Shipping Dimensions: 550 x 350x 450mm At 48KG
Distance between bolt holes:
Pulley side – 250mm
Breather side – 165mm

To contact Conon Motor about Air Compressor Pump 10hp | W3090 use Get a quote.

This 42cfm TRIPLE cylinders compressor pump is a high quality 3 cylinder single stage CAST IRON pump that is suitable for use with 7.5KW/10HP three PHASE electric motor. Suitable for industrial & mechanical use.

Specifications:

Model: W3090
Type: Air Compressor Pump
Motor Suits: 7.5KW/10HP
Air Receiver Size: 150L TO 250L
Pump Displacement: 1198L/min at 1050rpm / 42cfm
Bore x Stroke: 90mm x 3
Flywheel Diameter: 350mm DOUBLE Grooves
Dimensions: 620 x 430 x 510mm
Shipping Dimensions: 550 x 350x 450mm At 48KG
Distance between bolt holes:
Pulley side – 250mm
Breather side – 165mm

Read less...

To contact Conon Motor about Air Compressor Pump 10hp | W3090 use Get a quote.
