Radiodetection - Underground Cable & Pipe Locator Kit | SuperCAT4+ Get latest price

Read more...

To contact Testrix about Radiodetection Underground Cable & Pipe Locator Kit | SuperCAT4+ use Get a quote.

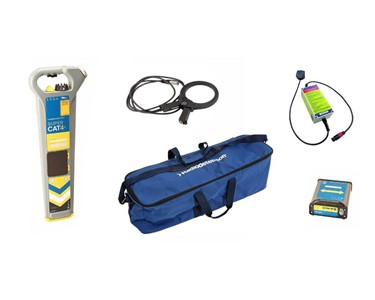

The kit includes a SuperCAT4+ locator, a T1-640/65 transmitter, a 100mm signal clamp, a live plug connector and a soft carry bag.

The SuperCAT4+ Kit consists of the SuperCAT4+, which can utilise a comprehensive set of active frequencies, in order to detect and trace different cable types, in variety of environmental conditions. Featuring Dynamic Overload Protection, StrikeAlert and TruDepth technology, the SuperCAT4+ allows the user to accurately detect services in a safe and efficient manner.

Built for on-site use, the SuperCAT4+ is designed with lightweight, ABS casing and is rated to IP54 for all-weather operation. The SuperCAT4+ features a high-contrast display with auto-backlight and bargraph, allowing the user to zone in on the buried service. In addition, the SuperCAT4+ is battery powered, has a loud speaker for audible warnings and is capable of sensitivity control.

The SuperCAT4+ can be operated using a simple mode selection, which can be chosen based on the signal type being located. The two main modes on the SuperCAT4+ are the power mode and the radio mode. As the name suggest, power mode is utilised to detect electromagnetic fields generated by loaded power cables. Power mode also features StrikeAlert, which warns the user of shallow buried utilities. Radio mode, on the other hand, is applied to detect long range radio signals, which can be radiated along dead or non-current carrying services such as buried metallic cables and pipes.

As well as StrikeAlert, the SuperCAT4+ comes with a range of features, designed for safe work practices. One such feature is Dynamic Overload Protection filters, which enables the user to filter out high levels of electrical interference, as found around substations and near high-voltage transmission cables. TruDepth technology is also present on this model, which only indicates depth when the locator is oriented correctly above the target cable, pipe or sonde, and thus, aids in providing the most accurate depth reading. Real Sound  is another feature of this particular model, in which the audio signals emitted by the SuperCAT4+ are derived from the signals detected. Radio and Power Mode signals can be easily distinguished from each other and from background noise, helping to identify target utilities and differentiating between co-located utilities.

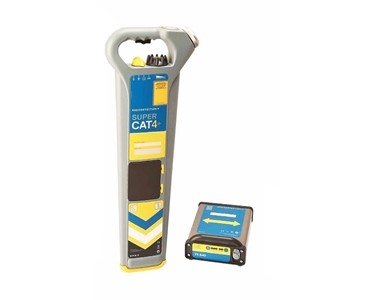

The locating kit pairs the SuperCAT4+ with a Radiodetection T1-640/65 transmitter which features three active frequencies; 640Hz, 8kHz and 65kHz. The lower 640Hz frequency is ideal for locating lower resistance cables such as power lines, and the 8kHz frequency is ideal for general locating. The higher 65kHz frequency is optimized to find well insulated utilities such as twisted-pair telecom cables or insulated pipe joints, and is optimal for induction methods, such as the signal clamp, which is included in the kit. Also included in the kit is a live cable/plug connector which can utilised to send an active transmitter signal through a mains socket or power point. This is useful in situations where power cables may not be accessible directly, such as at street level.

Key Features:

• Multiple frequency selection for power and telecom cables.
• Power Mode for live, underground cables.
• Radio Mode for dead services such as metallic pipes.
• Strike Alert - warning of live, shallow services.
• TruDepth - accurate depth measurement.
• Dynamic Overload Protection for filtering interference.
• Real Sound - audio signals are derived from the signals detected.
• High contrast display with backlight and bargraph.
• Battery operated receiver and transmitter.
• Sensitivity control.

Included:

• Radiodetection SuperCAT4+ Locator
• Radiodetection T1-640/65 transmitter
• 100mm signal clamp
• Live plug connector
• Soft carry bag
• Calibration certificate
