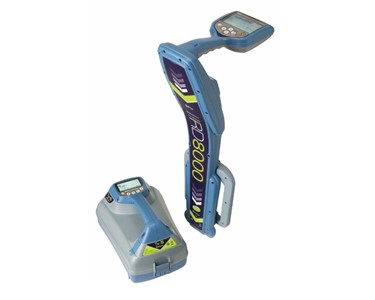

Containing a built in transponder, the RD8100PXLM is designed to meet the needs of users requiring a high level underground locator with advanced features for precision underground service locating. With 17 active frequencies, ranging from a low frequency 512Hz up to a ultra high 200kHz frequency, the RD8100PXL gives the operator additional fexibility of locating a range of buried utilities and infrastructure. The transponder, built into the RD8100PXLM can detect buried utility RF markers, making them suitable for use across a range of industries. Combined mode allows for scanning of buried cables, pipes and RF utility markers all at the same time, reducing survey time and offering a more simplistic user experience. Radiodetection's unique automatic depth estimation provides measurements when the locator is within close proximity of a RF marker. Rechargeable Li-Ion batteries are standard across all of the RD8100 marker locators, and all are equipped with Bluetooth and iLOC connectivity for remote control of key transmitter functions.

Features:

• 17 active locate frequencies
• Separate Peak and Null modes
• Dedicated sonde frequency for locating in non-metallic pipes and conduits
• 2 passive frequencies (power, radio)
• Built in transponder locates all common RF frequencies
• Current Measurement
• TruDepth technology for more accurate depth of services
• Optional Data Logging and GPS
• e-Cert allows the end user to remotely calibrate the unit in minutes
• Large high contrast screen
• RD Maps Android app allows utility mapping in real time
• Can be paired with Radiodetections range of transmitters or is available in a kit

TRANSMITTER:

The TX5 5-watt transmitter is an easy to use transmitter from Radiodetection. Based on a fully digital platform, the TX family of Radiodetection transmitters supports the entire range of RD7100, RD7200, RD8100 and RD8200 cable and pipe locators. The TX5 is an easy to use, entry-level, transmitter. All models feature a three-stage phase sensitive amplifier that delivers a constant current across its entire bandwidth in direct connect, clamp or inductive modes. The TX range is designed to deliver superior performance using minimal power consumption in a light weight and well-balanced, format. Based on a fully digital platform, the family of Radiodetection transmitters has been to support the range of Radiodetection RD7100, RD7200, RD8100 and RD8200 cable, pipe and RF marker locators. The TX5 is a low power transmitter. Both the TX5 and TX10 feature Fault Find as standard. All models feature constant current across their entire bandwidth in either direct connect, clamp or inductive mode. The transmitters are light-weight (6lb / 2.9kg), well-balanced and IP54 rated to cope with demanding environmental conditions. Each model has a removable accessory tray and a weatherproof battery compartment. A large, high contrast, backlit LCD screen provides the user with clear information.

Technical Specifications:

Protected to IP54

External 12DC operation

High Contrast LCD screen

Three Power versions, 1Watt, 3 Watt and 10 Watt

Batteries 8 x D cell (LR02)
