Multi-Field EMF Meter 50Mhz to 3.5 Ghz | TM-190

Supplier: Testrix

The TM-190 Multi-Field EMF Meter offers three measurements in one simple hand held meter:

Receive 1-3 days from order

A three axis magnetic field measuring device (Gauss Meter), with 3-channel internal measurement sensors(X,Y and Z) which enhance reliable measurements and monitoring of low frequency Electromagnetic Field strength, an Electric Field Meter, used for measuring low frequency electric fields and a RF Field Strength Meter, operating at frequencies from 50Mhz to 3.5 Ghz making it suitable as a microwave leakage detector as well as for other RF emitting equipment.

This meter indicates the level of electromagnetic pollution generated by appliances, power lines and industrial machinery..

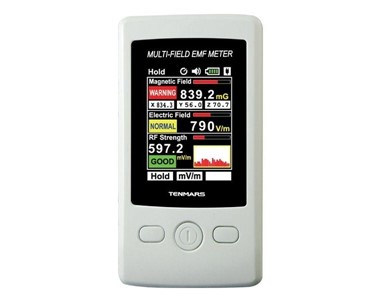

An easy to read full colour TFT display presents the information to the user in a clear way, with all three readings (RF field strength, electric field and magnetic field) shown at the same time making the TM-190 a very easy to use instrument. The data hold function allows the user to freeze the display at any time.

Features:

• Three measurements in one meter - Electromagnetic field, electric field and RF field strength.
• For triple axis measurements of low frequency electromagnetic fields, as well as electric and RF fields.
• Quick and easy measurement with three-channel measurement sensors
• Colour TFT display for measurement of all three fields simultaneously.
• Data hold (HOLD) function
• Auto ranging
• Easy & safe to use
• Battery life indicator

Applications:

• Low frequency (EMF) electromagnetic field strength measurement, electric field meassurement and RF field strength monitoring.
• Overhead power lines, appliances, industrial applications, RF emitting equipment (cellular communications), microwave leakage.
• Personal living environment EMF safety

Specifications:

	Electromagnetic field	Electric field	RF Strenght field
Sensor type:	Low Frequency Magnetic Fields Triple axis (X, Y, Z)	LF Electric Fields	RF Strength
Range:	0.02~2000mG, 0.02 to 200µT	50V/m to 2000V/m.	0.02µW/m² ~ 554mW/m²
Resolution:	0.01/0.1/1 mG or 0.01/0.1/1 µT	1 V/m	0.01μW / m², 0.1μA / m, 0.1mV/m,0.001μW/cm ², 1dB
Frequency:	50/60 Hz	50/60Hz	50MHz to 3.5GHz
Accuracy:	±(15%+100dgt)	± (7%+50dgt)	± 2dB at 2.45GHz

Accessories included:

• TM-190 Multifunction EMF meter
• User manual
• 3 x AAA batteries and calibration protocol

To contact Testrix about Multi-Field EMF Meter 50Mhz to 3.5 Ghz | TM-190 use Get a quote.

This meter indicates the level of electromagnetic pollution generated by appliances, power lines and industrial machinery..

Specifications:

	Electromagnetic field	Electric field	RF Strenght field
Sensor type:	Low Frequency Magnetic Fields Triple axis (X, Y, Z)	LF Electric Fields	RF Strength
Range:	0.02~2000mG, 0.02 to 200µT	50V/m to 2000V/m.	0.02µW/m² ~ 554mW/m²
Resolution:	0.01/0.1/1 mG or 0.01/0.1/1 µT	1 V/m	0.01μW / m², 0.1μA / m, 0.1mV/m,0.001μW/cm ², 1dB
Frequency:	50/60 Hz	50/60Hz	50MHz to 3.5GHz
Accuracy:	±(15%+100dgt)	± (7%+50dgt)	± 2dB at 2.45GHz

Accessories included:

• TM-190 Multifunction EMF meter
• User manual
• 3 x AAA batteries and calibration protocol

Read less...

To contact Testrix about Multi-Field EMF Meter 50Mhz to 3.5 Ghz | TM-190 use Get a quote.
