Loma - Food Metal Detector | LOMA Vertical Fall Metal Detection

Supplier: Inspection Systems

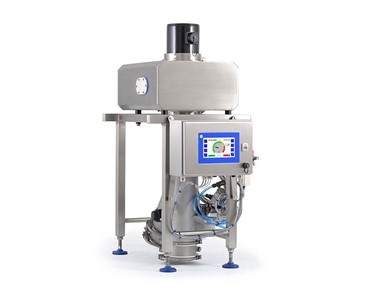

Food Metal Detector | LOMA Vertical Fall Metal Detection

The LOMA Vertical Fall Metal Detector is designed for fast and efficient detection of metal contaminants in bulk, powder, and granular products through gravity-fed systems. It ensures high-sensitivity inspection with user-friendly features for minimal downtime in food and ingredient processing lines.

Video for Loma Food Metal Detector | LOMA Vertical Fall Metal Detection

Description

The LOMA Vertical Fall Metal Detector is a gravity-fed metal detection system specifically engineered for inspecting bulk, powders, and granules. Complete with a robust frame, throughput tube, and selectable reject mechanisms (sealed valve or cowbell), it delivers optimal performance for industries handling food ingredients, cereals, coffee, and milk products. Its intuitive 7” touchscreen interface enhances usability, while the advanced variable-frequency detection provides reliable and rapid results.

Key Features

Large 7” colour touchscreen with new, easy-to-use interface (33% more space than previous models)
Rapid Auto-Learn for quick and accurate detection sensitivity
High detection levels: up to 0.6mm FE, 0.7mm NFE, 0.8mm stainless steel
Variable-frequency detection (31 to 882 KHz) optimized for a range of applications
Constructed from 304 brushed stainless steel, fully sealed for IP66 low pressure washdown environments
PVS, Ethernet, and USB enabled for enhanced connectivity and data handling

Specifications

Material of Construction	304 Brushed Stainless Steel
Detection Frequency Range	31 to 882 KHz (True Variable Frequency)
Supply Voltage	85 – 265 V, Single Phase, 50/60Hz, Neutral & Earth
Power Consumption	20 VA
Air Supply	5 to 8 Bar (10mm Outside Dia) / 72–116 PSI
Operating Temperature Range	-10°C to +35°C (14°F to 95°F)
Humidity Range	0 to 95% Relative Humidity (Non-condensing)
IP Rating	IP66
PVS/Ethernet/USB Capability	Yes

Applications

Inspection of bulk food products (cereals, coffee, milk products, food ingredients)
Ensuring contaminant-free production lines in food and beverage processing environments

Description

Key Features

Large 7” colour touchscreen with new, easy-to-use interface (33% more space than previous models)
Rapid Auto-Learn for quick and accurate detection sensitivity
High detection levels: up to 0.6mm FE, 0.7mm NFE, 0.8mm stainless steel
Variable-frequency detection (31 to 882 KHz) optimized for a range of applications
Constructed from 304 brushed stainless steel, fully sealed for IP66 low pressure washdown environments
PVS, Ethernet, and USB enabled for enhanced connectivity and data handling

Specifications

Material of Construction	304 Brushed Stainless Steel
Detection Frequency Range	31 to 882 KHz (True Variable Frequency)
Supply Voltage	85 – 265 V, Single Phase, 50/60Hz, Neutral & Earth
Power Consumption	20 VA
Air Supply	5 to 8 Bar (10mm Outside Dia) / 72–116 PSI
Operating Temperature Range	-10°C to +35°C (14°F to 95°F)
Humidity Range	0 to 95% Relative Humidity (Non-condensing)
IP Rating	IP66
PVS/Ethernet/USB Capability	Yes

Applications

Inspection of bulk food products (cereals, coffee, milk products, food ingredients)
Ensuring contaminant-free production lines in food and beverage processing environments

Read less...
