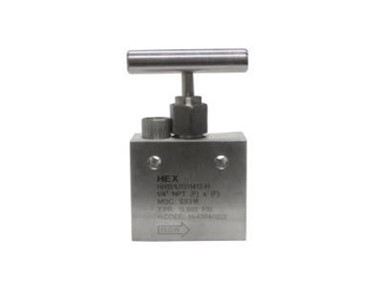

High Pressure Needle Valves up to 15,000 psi | HH Series

Supplier: Cebeco

The HH Series is a heavy duty, high pressure needle valve that features an industrial strength stem and bonnet and enhanced packing arrangement all designed to handle the tough conditions of high pressure service.

High pressure needle valve

Receive 1-3 days from order

With a multitude of configurations available, you will find a model to meet your varying needs. The HH Series is produced in 1/8″, 1/4″, 3/8″ 1/2″ NPT ends and 1/4″, 3/8″ and 9/16″ cone and threaded ends. Other high pressure connections are available upon request. For corrosive or other volatile applications, the HH Series can be specified in a variety of materials including Titanium, Hastelloy and Inconel.

Features & Benefits

Packing materials: TFE or high pressure graphite
Backseated bonnets with packing below the stem threads – to eliminate potential thread contamination by the process media
Non-rotating tip (NRT) stem: provides tight, repeatable shutoff without galling or cross-scoring that occurs on ball type stems

Specifications

Maximum working pressure: up to 15,000 psi (1035 bar)
Temperature ratings: -100°F to +450°F (-73°C to +232°C); high temperature materials available for severe up to 1100°F (593°C)

To contact Cebeco about High Pressure Needle Valves up to 15,000 psi | HH Series use Get a quote.

Features & Benefits

Packing materials: TFE or high pressure graphite
Backseated bonnets with packing below the stem threads – to eliminate potential thread contamination by the process media
Non-rotating tip (NRT) stem: provides tight, repeatable shutoff without galling or cross-scoring that occurs on ball type stems

Specifications

Maximum working pressure: up to 15,000 psi (1035 bar)
Temperature ratings: -100°F to +450°F (-73°C to +232°C); high temperature materials available for severe up to 1100°F (593°C)
