Automated Insulation Resistance Tester with PC Interface | 1060

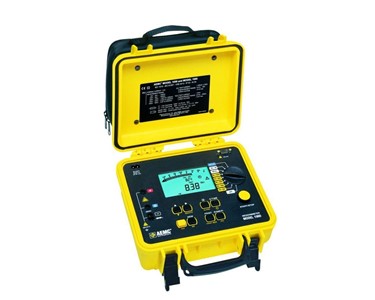

The AEMC 1060 Insulation Resistance Tester is an industrial quality, fully automated 1000V insulation tester, which can be used in conjunction with a PC and controlled remotely.

Receive 1-3 days from order

It provides insulation measurements to 4000GΩ (4TΩ). Test results include DAR, PI, capacitance, voltage measurement and duration of test.

The Model 1060 has an RS-232 interface and an extensive memory function, which permits storage results in files specific to a sample. A standard software package (DataView®) included with the Model 1060 enables the user to display test results and graphs.

The Model 1060 can also be fully programmed and controlled by a PC. Automatic report generation of test results is quick and easy via direct connection to a printer or through a PC.

Features:

True Megohmmeter®
Test voltage combinations of 50V, 100V, 250V, 500V and 1000V
Insulation measurement to 4000GΩ (4TΩ )
Direct measurement of DAR and PI values
Direct measurement of sample Capacitance
Display of test voltage and run time
Programmable test run times and PI times
Smooth and Alarm functions
Automatic test inhibition if live sample >25V
Automatic discharge after use with voltage display
Large dual display with time, voltage and measurement
Bright blue electroluminescent backlight
Remote operation with optional test probe
Rugged, dual wall, weatherproof field case with detachable lead/accessory pouch
AC rechargeable NiMH batteries
RS-232 interface for direct printing of results
Remote operation through PC
Includes software to configure instrument and generate reports.

Applications:

Test insulation on cables, transformers, motors and wiring installations
High resistance or absorption tests
Spot reading tests
Timed resistance measurements
Dielectric (DAR) and polarization (PI) tests
Low insulation test range for testing old or flooded installations
Motor insulation resistance measurements
Continuity checks and low resistance measurements
Computer controlled production line testing
Predictive maintenance by storing results in PC for trend analysis

To contact Testrix about AEMC Automated Insulation Resistance Tester with PC Interface | 1060 use Get a quote.

It provides insulation measurements to 4000GΩ (4TΩ). Test results include DAR, PI, capacitance, voltage measurement and duration of test.

The Model 1060 can also be fully programmed and controlled by a PC. Automatic report generation of test results is quick and easy via direct connection to a printer or through a PC.

Features:

True Megohmmeter®
Test voltage combinations of 50V, 100V, 250V, 500V and 1000V
Insulation measurement to 4000GΩ (4TΩ )
Direct measurement of DAR and PI values
Direct measurement of sample Capacitance
Display of test voltage and run time
Programmable test run times and PI times
Smooth and Alarm functions
Automatic test inhibition if live sample >25V
Automatic discharge after use with voltage display
Large dual display with time, voltage and measurement
Bright blue electroluminescent backlight
Remote operation with optional test probe
Rugged, dual wall, weatherproof field case with detachable lead/accessory pouch
AC rechargeable NiMH batteries
RS-232 interface for direct printing of results
Remote operation through PC
Includes software to configure instrument and generate reports.

Applications:

Test insulation on cables, transformers, motors and wiring installations
High resistance or absorption tests
Spot reading tests
Timed resistance measurements
Dielectric (DAR) and polarization (PI) tests
Low insulation test range for testing old or flooded installations
Motor insulation resistance measurements
Continuity checks and low resistance measurements
Computer controlled production line testing
Predictive maintenance by storing results in PC for trend analysis
